SCHNEEBERGER GrindingHub Highlight 6/7: High-End Components Manufactured with the Norma NGC
5-axis grinding machines from SCHNEEBERGER have established themselves for grinding a wide variety of precision parts. This will be demonstrated at the trade show using high-precision globoid cams for indexing gearboxes.

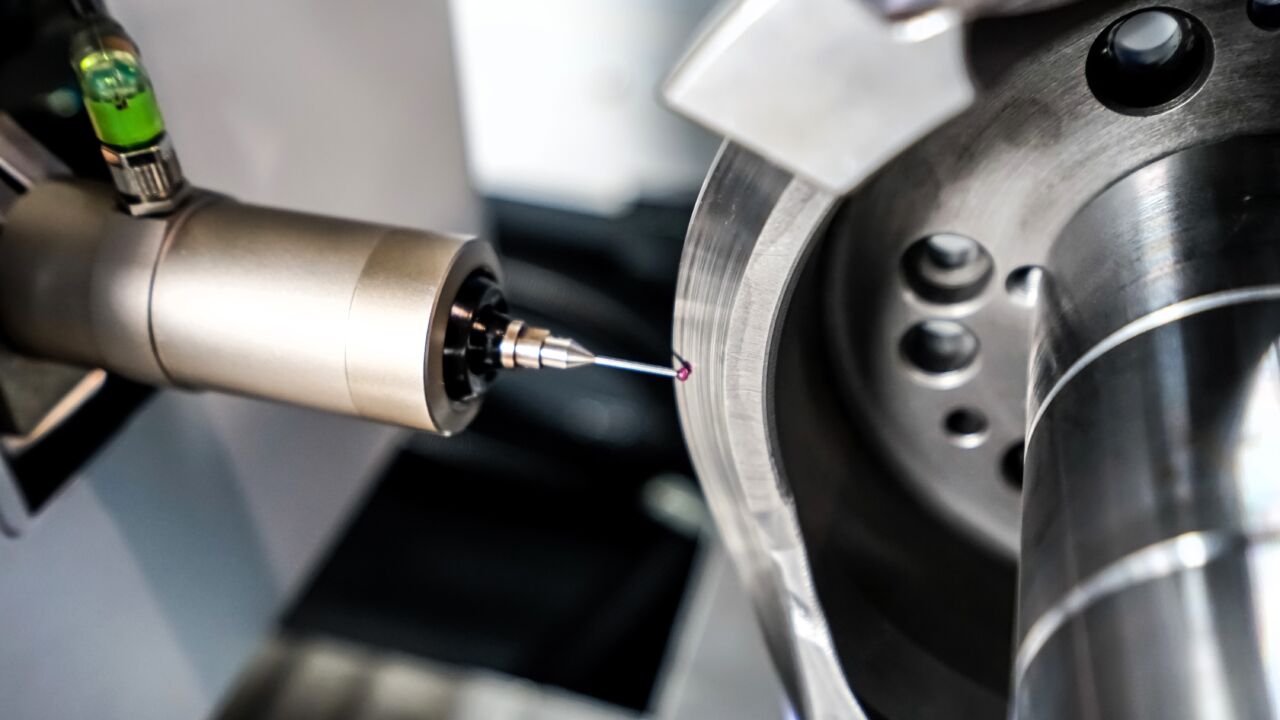

Probing the part

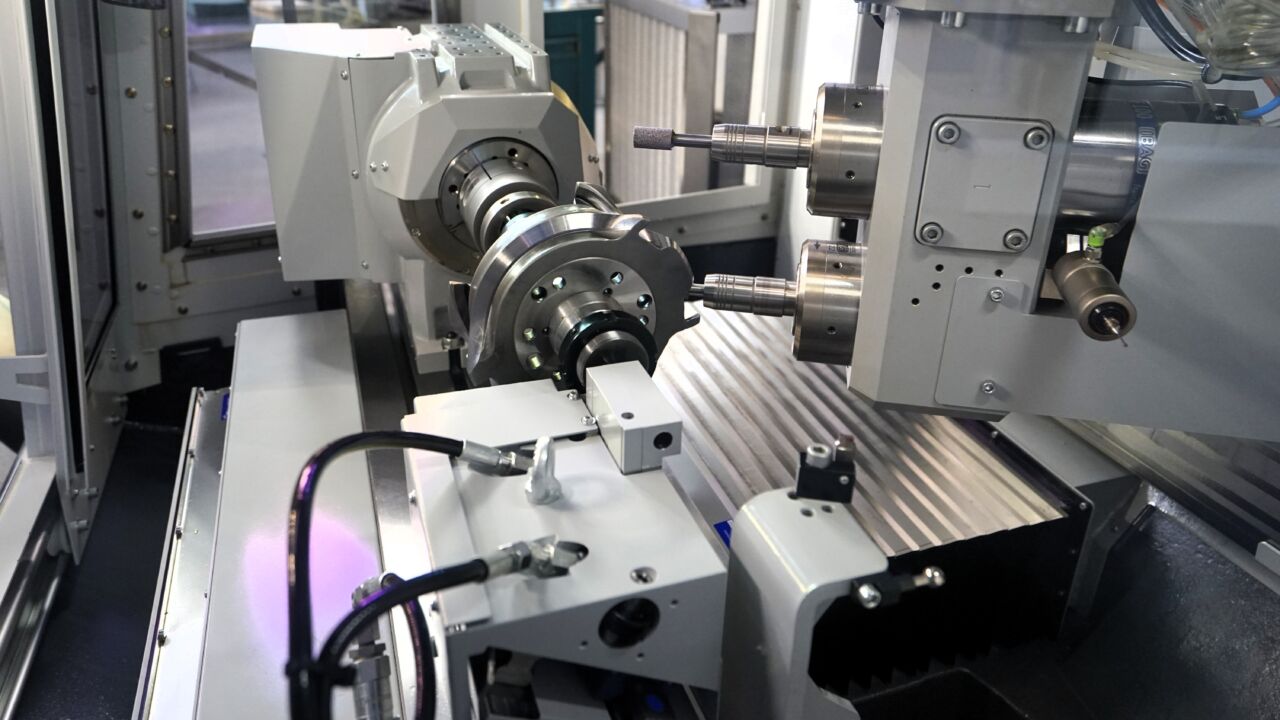

Machine room with two high frequency spindles

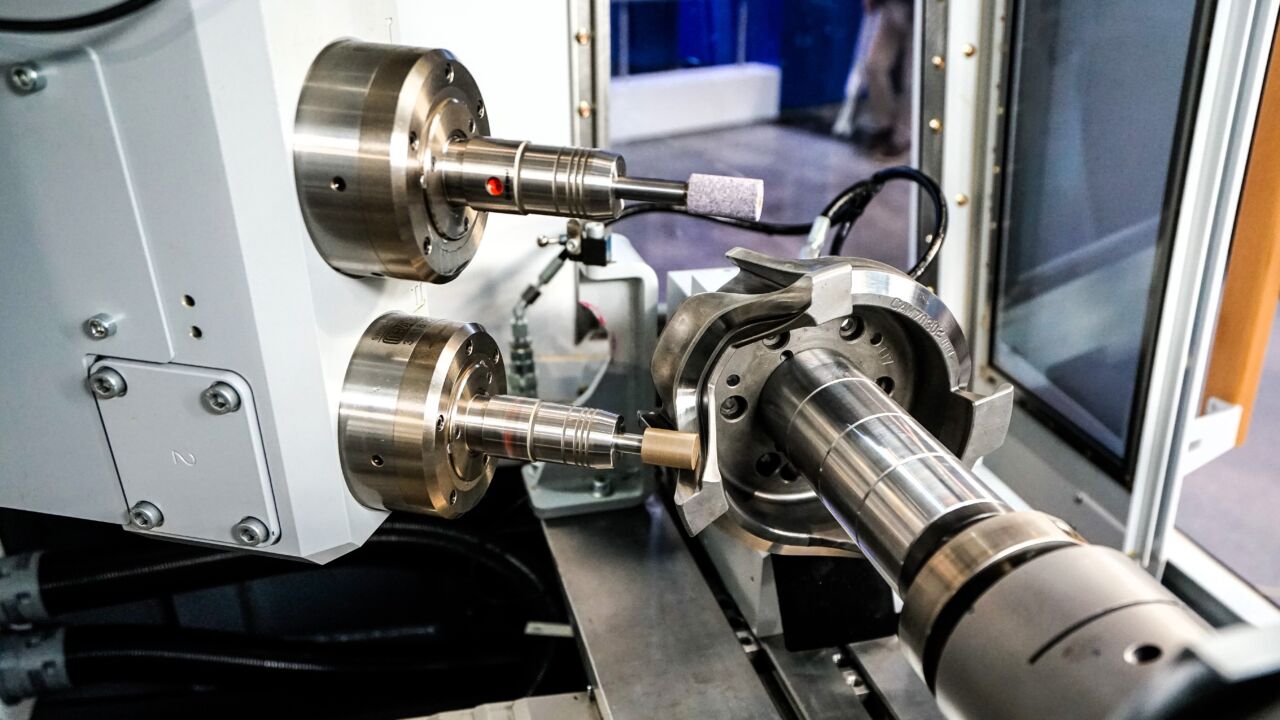

Grinding the cam tracks
Grinding parts of an indexing gearbox is really exciting
Grinding Hub 2024 Impressions 6
For this grinding application, the flexible Norma NGC is configured with two high-frequency grinding spindles.
The lower HF spindle roughs with an electroplated mounted point, the upper spindle finishes with a dressable ceramic mounted point.
The grinding process is programmed completely and directly via the SCHNEEBERGER Quinto Qg1 grinding software. A 3D model from the customer's design serves as the basis, which can be easily imported via the Qg1 interface. Alternatively, the centerline of the upstream milling process (G-code) can also be used to calculate the two grinding paths.
The variety of grinding applications for precision parts is unlimited. Advice on the right hardware and software is our pleasure.
