Thread Roll production in one chucking: SCHNEEBERGER has the right twist.
Thread-, ball screw- or gear rolling dies, the Gemini NGM linear masters all challenges. The optional wheel loader allows for cylindrical grinding, profiling, run-in and run-out taper as well as chamfering processes all in one chucking.

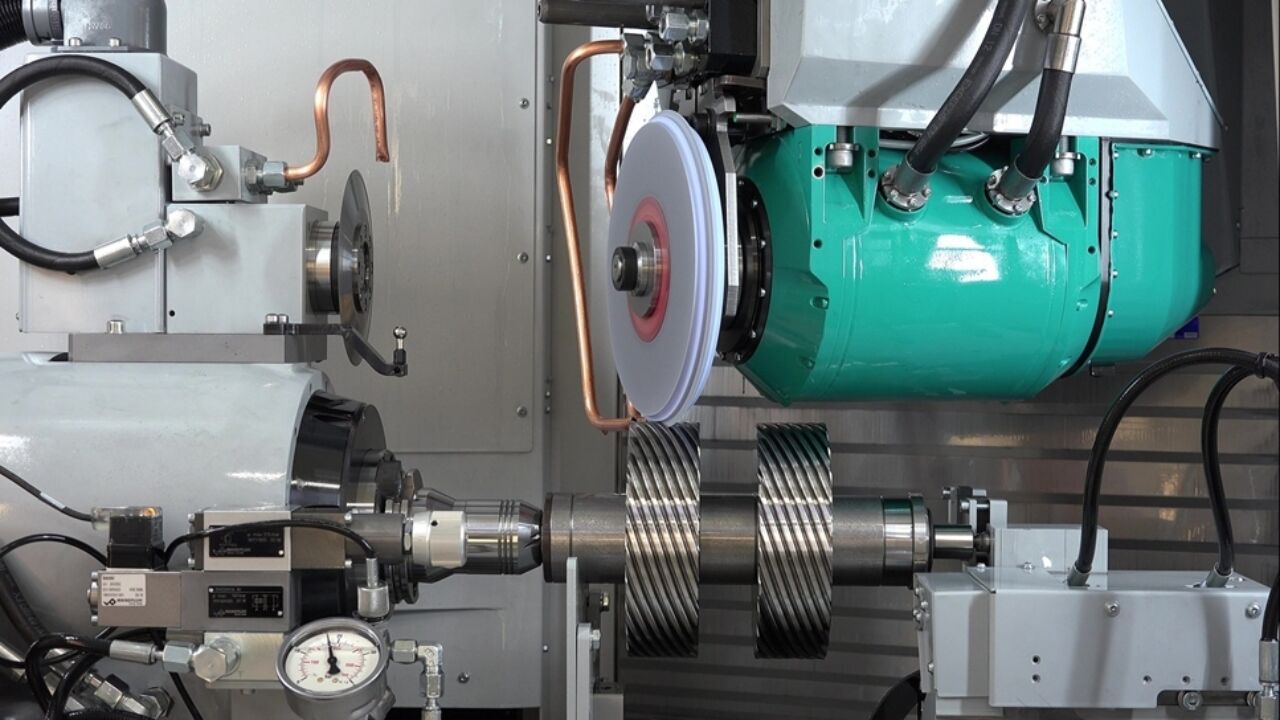

Production of a Thread Roll for the production of worm shafts on a SCHNEEBERGER Gemini NGM linear.
Grinding of a Thread Roll with highest surface finish.

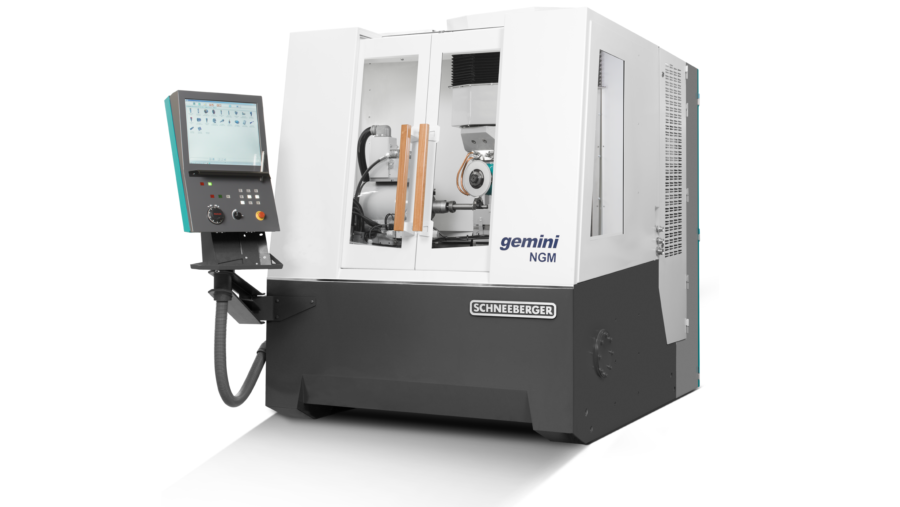

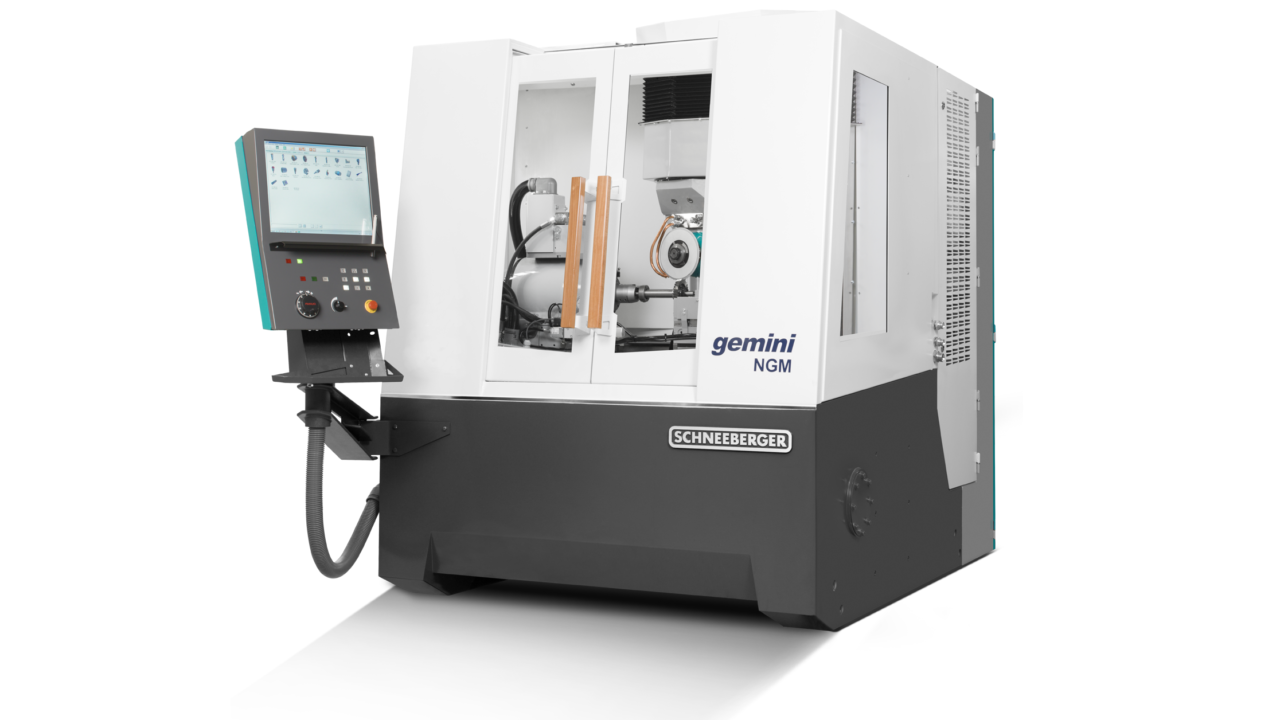

Gemini NGM Linear meets every challenge to grind the corresponding high accuracy gear cutting tool.
The requirements are clearly defined: Surface finish class polished. The rigid mechanical design of the Gemini NGM Linear makes it possible. Essential are features like the polymer concrete machine base, an optimal mechanical structure, thermal stability and direct drives such as torque motors and linear drives.
The grinding software Qg1 offers a great deal of flexibility with total precision. In addition, the calculation of wheel forms as well as the material specific grinding processes and the corresponding dressing cycles are included.
For your production of cold forming tools, SCHNEEBERGER has the hottest solution.
